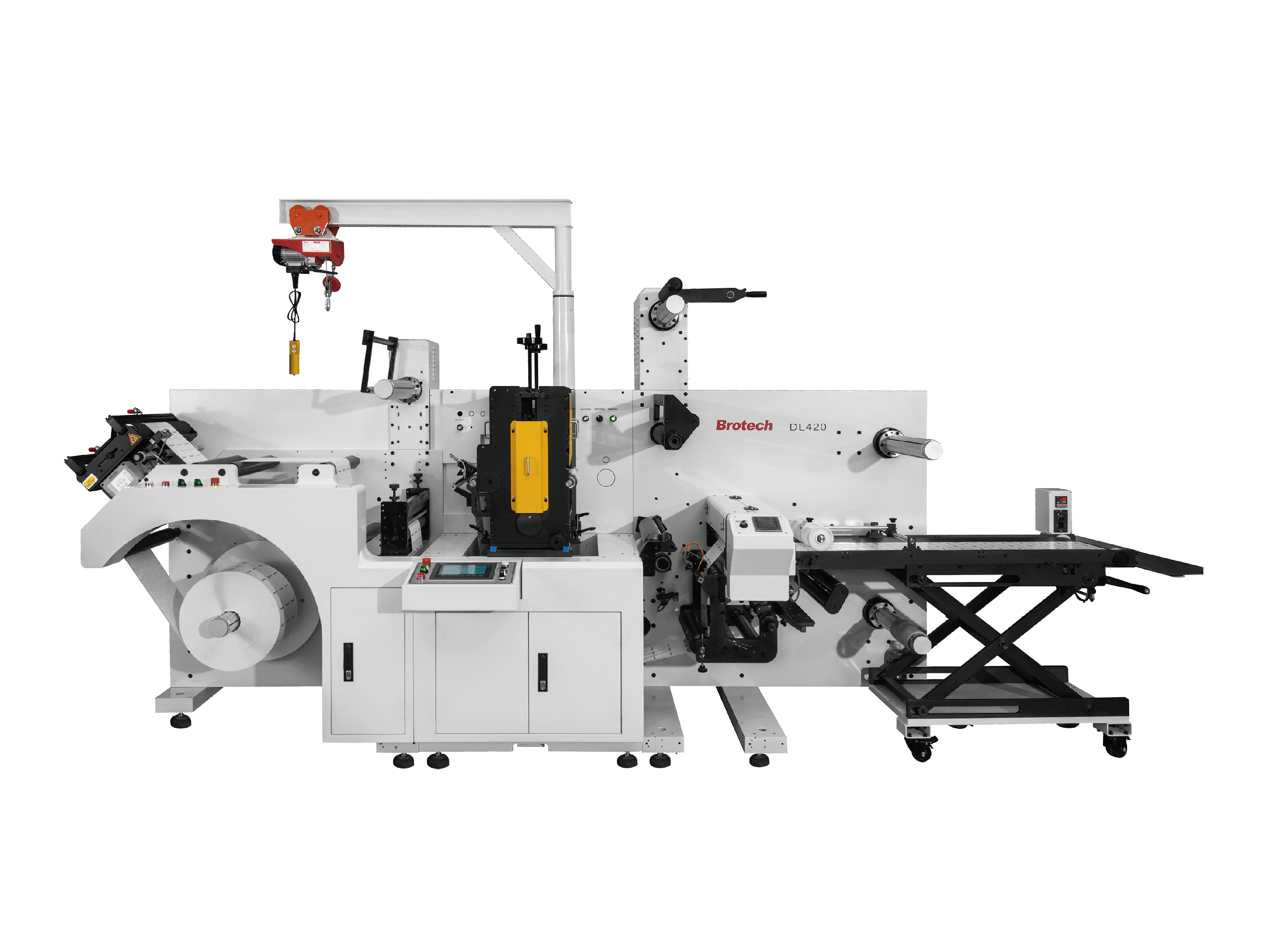

DL Multi-functional Rotary Die Cutting System In-Mould Label Die Cutting & Collecting Conveyor
DL Multi-functional Rotary Die Cutting System In-Mould Label Die Cutting & Collecting Conveyor
DESCRIPTIONS
Fully servo driven rotary die cutting unit (full-rotary or semi-rotary), upgradable by modular designed; Suitable for die cutting short or medium run jobs, roll to roll or roll to sheet. With die cutting, slitting and sheet, collection, combined high efficient and easy to operate.
TECHNICAL SPECIFICATIONS
| MODEL | DL 330 | DL 420 | DL 520 |
| Max web width | 340mm | 430mm | 530mm |
| Max unwind diameter | 700mm | 700mm | 700mm |
| Max rewind diameter | 600mm | 600mm | 600mm |
| Max die cutting width | 330mm | 420mm | 520mm |
| Max semi-rotary die cutting speed | 70m/min | 70m/min | 70m/min |
| Max semi-rotary repeat length | 457mm | 457mm | 457mm |
| Max mechanical speed | 130m/min | 130m/min | 130m/min |
| Die cutting registration tolerance | ±0.15mm | ±0.15mm | ±0.15mm |
| Air supply | 8bar | 8bar | 8bar |
| Rated voltage | 3PH+N+PE | 3PH+N+PE | 3PH+N+PE |
| Size (length × width × height) | 4.4×2.2×2.3m | 4.4×2.3×2.3m | 4.4×2.4×2.3m |
| Machine weight | 2.5T | 3T | 3.5T |
FUNCTIONING UNITS
Die Cutting Unit: Equipped with full-rotary or semi-rotary mode, with magnetic cylinder or solid cylinder to die cut short or medium run jobs, especially for digital printed labels.
Slitting Unit: With advanced shear slitting for precise and steady, razor blade slitting or crush slitting, can be provided as option.
Conveyor Unit: Servo driven movable standard conveyor for IML or sheeted label collection, speed is adjustable with steady sectionalized control.
FEATURES & ADVANTAGES
Auto/manual die cutting registration system, servo driven with magnetic cylinder or solid cylinder. High precision and reduce material waste. Both full-rotary or semi-rotary mode, for IML job with magnetic or solid cylinder to die cut short run, medium run jobs.
Modular designed, upgradable by adding more flexo units and die cutting units.
APPLICATIONS
Electronics, cosmetics, packaging, pharmaceutical, toys, logistics, garments, security, etc.
SUBSTRATES
Standard material thickness is 35~250μm of film / paper / adhesive material / light carton board paper, other special materials need to be tested.
